Sauna Heater Set | Under-bench sauna heater Invisio Midi & Sauna control EOS Compact DP
Recommended heater output:
6.0 kW from 6 to 8 m³
9.0 kW from 9 to 14 m³
12.0 kW from 14 to 18 m³
Scope of delivery:
1st part: Sauna heater EOS Invisio Midi, under-bench heater
2nd part: Sauna control EOS Compact DP
3rd part: Temperature sensor incl. temperature limiter
4th part: 2 m sensor cable in red/white (temperature sensor)
5th part: 2 m silicone cable (heater control)
6th part: Cover protection grille and infusion funnel with hose
7th part: 20 kg olivine-diabase sauna stones
Scope of delivery from 12 kW : additionally power switching device LSG 10 CA

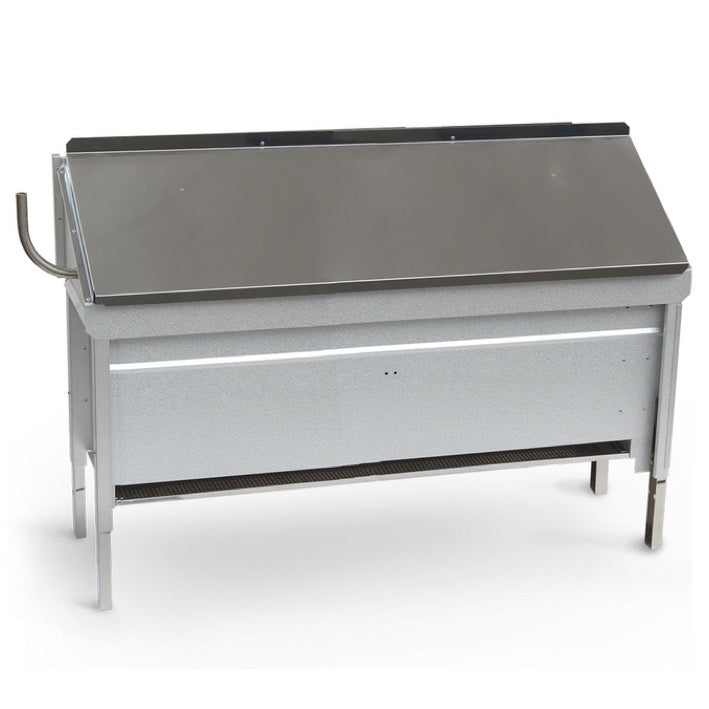

Medium-sized version of the EOS Invisio under-bench heater series

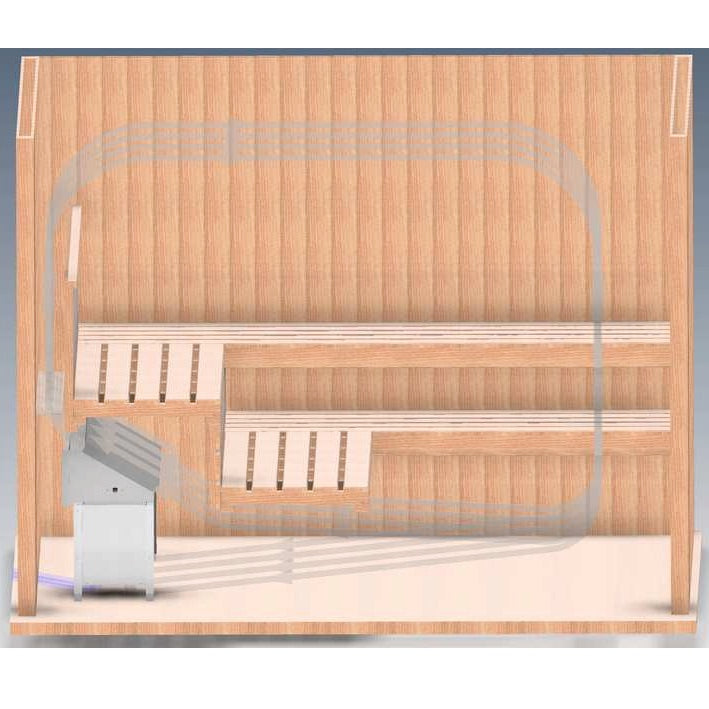

With the EOS Invisio series, EOS introduces a unique series of invisibly mounted under-bench heaters: the particularly space-saving EOS Invisio sauna heaters are placed almost invisibly under the sauna benches and separated by an additional wall with only 10 cm distance to the sauna and partition wall.
Thanks to this unique construction, these heaters offer very high safety - direct contact with the heater is not possible and, compared to classic stand-alone heaters, valuable space is saved. In many cases, an additional bench can fit into the cabin and the sauna appears more spacious.
Despite the hidden installation, the classic infusion is of course still possible. All EOS Invisio heaters are supplied with an infusion funnel and silicone hose. The infusion water is distributed over the entire width of the heater via a special grille, which ensures fast and even evaporation.

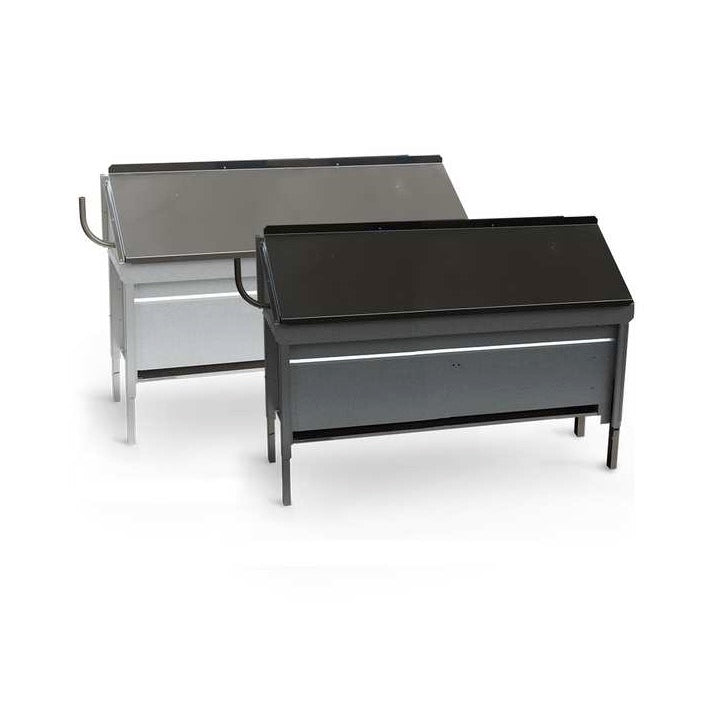

The compact EOS Invisio Midi for the Finnish sauna is suitable for private and commercial use. Robust construction with 20 kg stone basket. Connection for infusion hose left and right. Adjustable height. Heating elements without contact with the stones. With cover protection grille and infusion set.
Your advantages:
- High safety thanks to concealed mounting.
- Service- and maintenance-friendly design.
- Still offers the possibility for infusions - funnel and connection hose included.
- With cover protection grille - so that no objects can accidentally fall onto the heater.
- Optimized heating behavior thanks to special arrangement of the heating elements - for faster heating time.
- Robust, durable construction. Height adjustable by 12 cm.

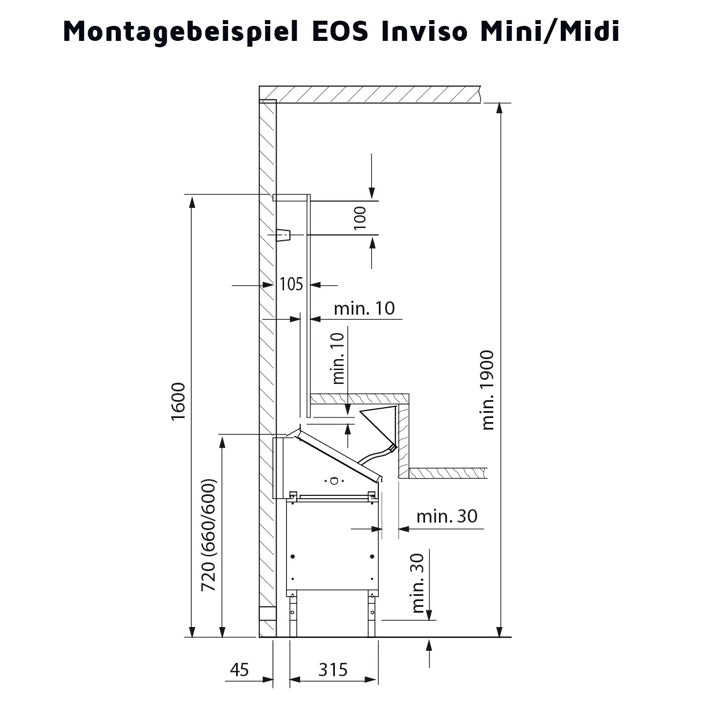

- Very space-saving - only 10 cm space required for the partition wall.
- Ideal for cabins 6 - 18 m³, more space for sauna benches.
- Stone basket with approx. 20 kg stone volume.
Technical data:
|
Electrical connection |
400 V 3N AC 50 Hz |
|
Control unit fuse |
3 x 16 A |
|
Device dimensions H/W/D, in cm |
Height 65 / 71 / 77 cm Width 116 cm Depth 38 cm |
|
for cabin volume (6.0 / 9.0 / 12.0 kW) |
6 - 8 m³ / 9 - 14 m³ / 14 - 18 m³ |
|
Minimum dimensions of ventilation (6.0 / 9.0 / 12.0 kW) |
35 x 4 cm / 35 x 6 cm / 35 x 7 cm |
|
Weight without stones and packaging (6.0 / 9.0 / 12.0 kW) |
24 kg / 25 kg / 27 kg |
|
Stone filling |
20 kg |
|
LSG required |
no / EMOTEC L09 R (only for 12.0 kW) |
*Sauna technology made in Germany, EOS Werke
*Tested safety: VDE

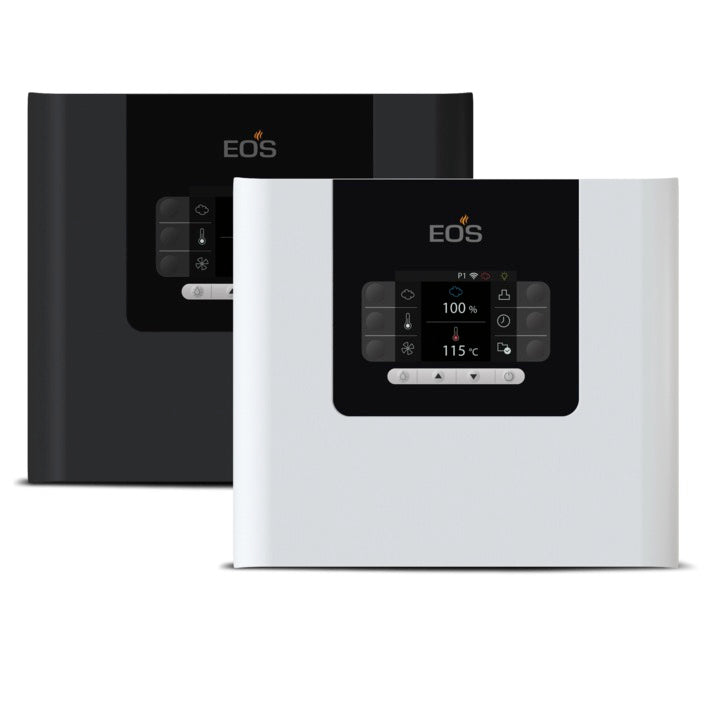

Sauna control EOS Compact DP
The new EOS Compact sauna control offers additional functions paired with a simple and clear operating concept.
-
EOS Compact DP: electronic control unit for Finnish (dry) sauna. Temperature control range: 30 °C - 115 °C
You can quickly and easily control the temperature of your sauna heater as well as the cabin lighting using four direct selection buttons and six soft keys. The 3.5" TFT display clearly shows all important parameters at a glance.
The control offers a wide range of functions with numerous convenience features, such as a practical pre-selection timer in combination with a safety device, the setup of four different user profiles, a connection for light and fan, an operating lock, a safety temperature limit (139°C), a remaining run time display, a 24-hour pre-selection timer, heating time limit (6 hours / 12 hours / 18 hours / unlimited) and a holiday home mode.
The control impresses with its modern and elegant design and, with its flat housing, allows flexible mounting on the wall or partially recessed.
For more individuality, this series of controls is available in classic white or modern anthracite as a variant for Finnish (dry) sauna operation or as a combi control for Finnish and humid operation, each with 10 kW and various functional gradations.
|
Electrical connection |
400 V 3N AC 50 Hz |
|
Switching capacity |
10 kW, expandable |
|
Temperature control range |
30 - 115 °C Finnish |
|
Pre-selection / Timer |
24 hrs. and recurring |
|
Heating time limit |
6 h, 12 h, 18 h unlimited |
|
Dimensions H/W/D in mm |
220 x 255 x 65 mm |
|
Ambient temperatures during operation |
-10 to +40 °C |
|
Weight without packaging approx. |
1.2 kg |
*Sauna technology made in Germany, EOS Werke
* Tested safety: VDE
Silicone connection cable, silicone cable, Ø 5 x 2.5 mm²
Connection between sauna control unit and sauna heaters from 4.5 to 9 kW.
- Connection: 400 V 3N AC
- Fuse: 3 x 16 A
- Temperature range: -50 to +180°C
Sauna stones
Infusion stones: special original olivine-diabase sauna natural stones
- Weight: approx. 20 kg unit
