Sauna Heater Set Invisio Midi & Econ D2 | Under-bench heater
Preis auf Anfrage
Manufacturer Information (GPSR)
EOS Saunatechnik GmbH
Schneiderstriesch 1
35759 Driedorf
Germany
Phone: +49 2775 82 0
info@eos-sauna.de
Sauna Heater Set | Invisio Midi Underbench Heater & Econ D2 Control Unit
Recommended heater output:
6.0 kW for 6 to 8 m³
9.0 kW for 9 to 14 m³
12.0 kW for 14 to 18 m³
Scope of delivery:
Part 1: EOS Invisio Midi sauna heater, underbench heater
Part 2: EOS ECON D2 digital sauna control unit
Part 3: Digital temperature sensor including temperature limiter
Part 4: 2.0m sensor cable in red/white (temperature sensor)
Part 5: 2.0m silicone cable (heater control)
Part 6: Protective cover grille and infusion funnel with hose
Part 7: 20 kg Olivine-Diabase sauna stones

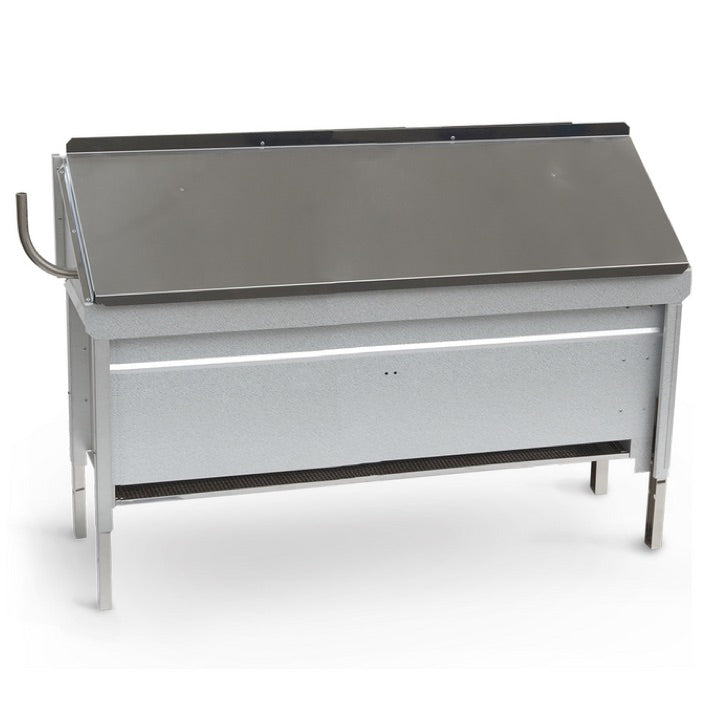

Medium-sized version of the EOS Invisio underbench heater series

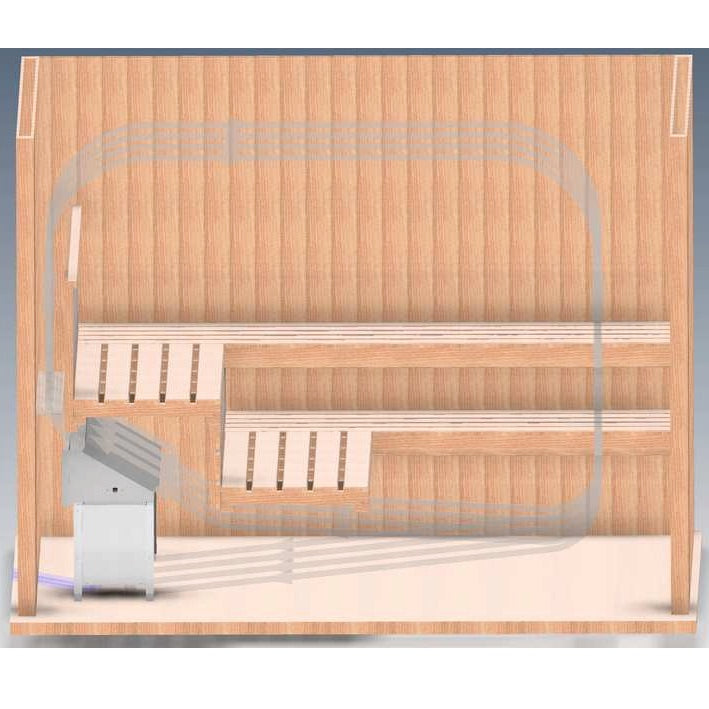

With the EOS Invisio series, EOS presents a unique series of invisibly mounted underbench heaters: the particularly space-saving EOS Invisio sauna heaters are placed almost invisibly under the sauna benches and separated by an additional wall with only 10 cm distance to the sauna and partition wall.
Thanks to this unique construction, these heaters offer very high safety - direct contact with the heater is not possible and, compared to classic floor-standing heaters, valuable space is saved. In many cases, an additional bench can fit into the cabin and the sauna appears more spacious.
Despite the hidden installation, classic infusions are, of course, still possible. All EOS Inviso heaters are supplied with an infusion funnel and silicone hose. The infusion water is distributed over the entire width of the heater via a special grille, which ensures fast and even evaporation.

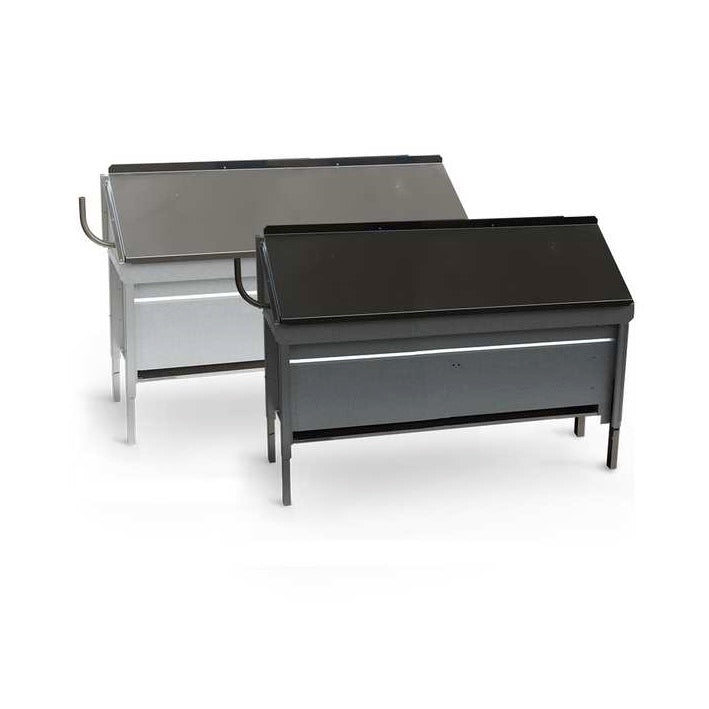

The compact EOS Invisio Midi for the Finnish sauna is suitable for private and commercial use. Robust construction with 20 kg stone basket. Connection for infusion hose left and right. Adjustable height. Heating elements without contact with the stones. With protective cover grille and infusion set.
Your advantages:
- High security thanks to concealed mounting.
- Service and maintenance-friendly design.
- Still offers the possibility for infusions - funnel and connecting hose included.
- With protective cover grille - so that no objects can accidentally fall onto the heater.
- Optimized heating behavior thanks to special arrangement of heating rods - for faster heating time.
- Robust, durable construction. Height adjustable by 12 cm.

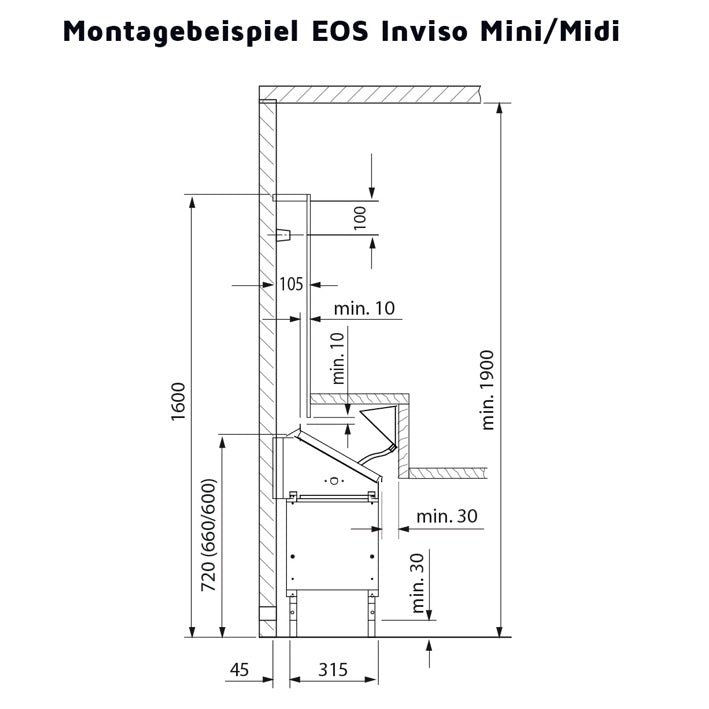

- Very space-saving - only 10 cm space required for the partition wall.
- Ideal for cabins 6 - 18 m³, more space for sauna benches.
- Stone basket with approx. 20 kg stone volume.
Technical data:
|
Electrical connection |
400 V 3N AC 50 Hz |
|
Control unit fusing |
3 x 16 A |
|
Device dimensions H/W/D, in cm |
Height 65 / 71 / 77 cm Width 116 cm Depth 38 cm |
|
for cabin volume (6.0 / 9.0 / 12.0 kW) |
6 - 8 m³ / 9 - 14 m³ / 14 - 18 m³ |
|
Minimum dimensions for ventilation (6.0 / 9.0 / 12.0 kW) |
35 x 4 cm / 35 x 6 cm / 35 x 7 cm |
|
Weight without stones and packaging (6.0 / 9.0 / 12.0 kW) |
24 kg / 25 kg / 27 kg |
|
Stone filling |
20 kg |
|
LSG required |
no / EMOTEC L09 R (only for 12.0 kW) |
*Sauna technology made in Germany, EOS Werke
*Tested safety: VDE

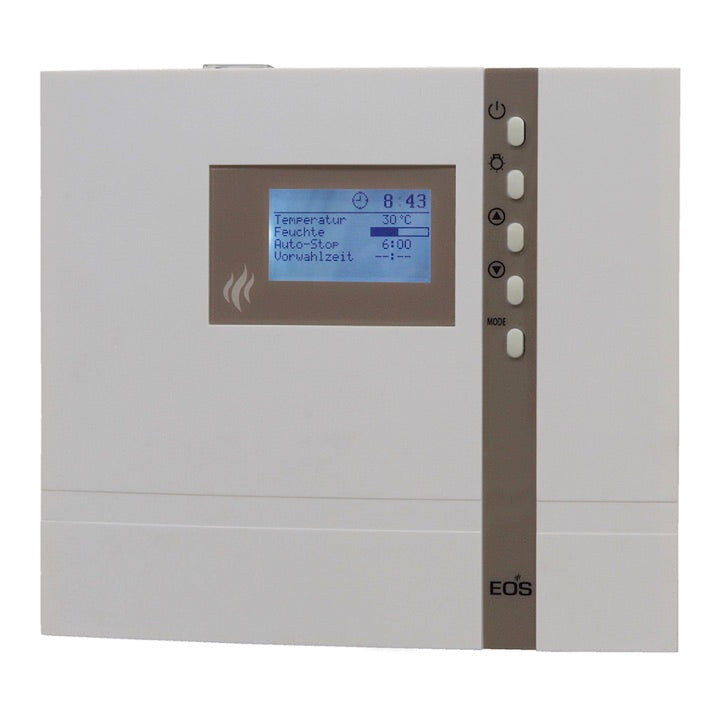

Digital sauna control unit ECON D2
for the classic, Finnish sauna.
Technical details:
- Housing: upper and lower part made of plastic
- Digital display of time and remaining time
- Digital display of selected temperature
- Control: digital two-point control
- 6 language menu
- Time and pre-selection timer in 24 h real-time
- Energy saving display
- Operation via keypad
- Display 65x35mm
- incl. key lock/child safety lock
- Error display via LED
- Light on and off switch
- Temperature control between 30°C and 115°C
- Safety temperature limiter 142°C
- incl. silicone cable for temperature sensor approx. 1.7 m
- incl. KTY temperature sensor
- Splash protection – IPx4
- Heating time limit: 6, 12 hours
- Switching capacity: 9 kW expandable with LSG
- Weight: approx. 1.0 kg
- Dimensions: HWD = 220 x 250 x 60 mm
- Connection: 400 V 3N AC 50 Hz
- switch-off switch
* Sauna technology made in Germany, EOS Werke
* Tested safety: VDE
Silicone connection cable, silicone cable, Ø 5 x 2.5 mm²
Connection between sauna control unit and sauna heaters from 4.5 to 9 kW.
- Connection: 400 V 3N AC
- Fusing: 3 x 16 A
- Temperature range: -50 to +180°C
Sauna stones
Infusion stones: special original Olivine-Diabase sauna natural stones
- Weight: approx. 20 kg unit
free shipping in Germany
*German islands on request
Shipping directly from the manufacturer
